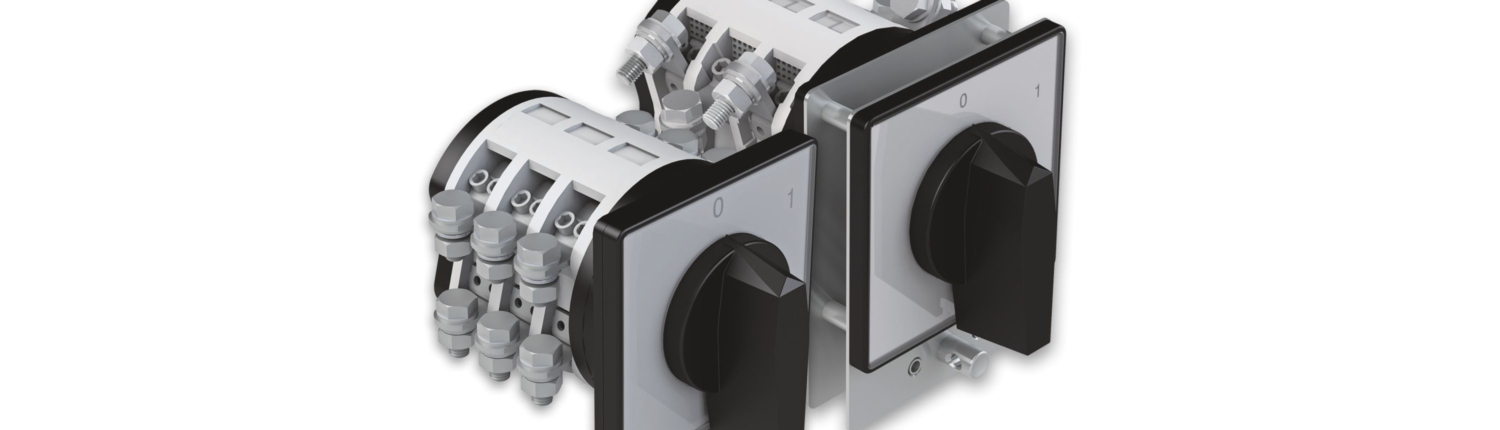

G/4G series cam switches are designed according to modern principles and use high-quality insulating and contact materials. These switches offer high switching capacity, durability, and compact dimensions. The series is developed to meet the needs of various industrial applications while ensuring protection against accidental contact.
Certificates and approvals

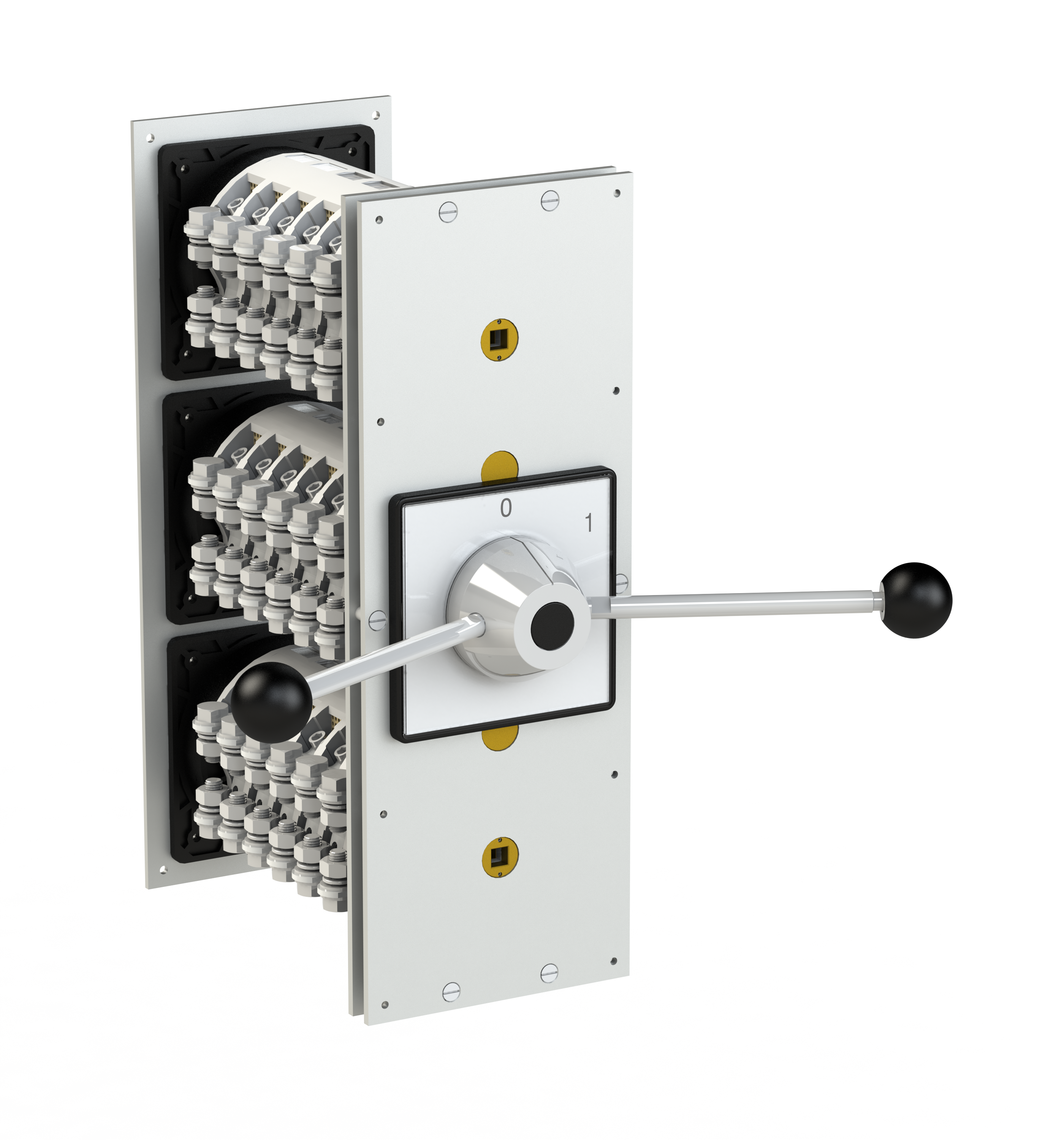

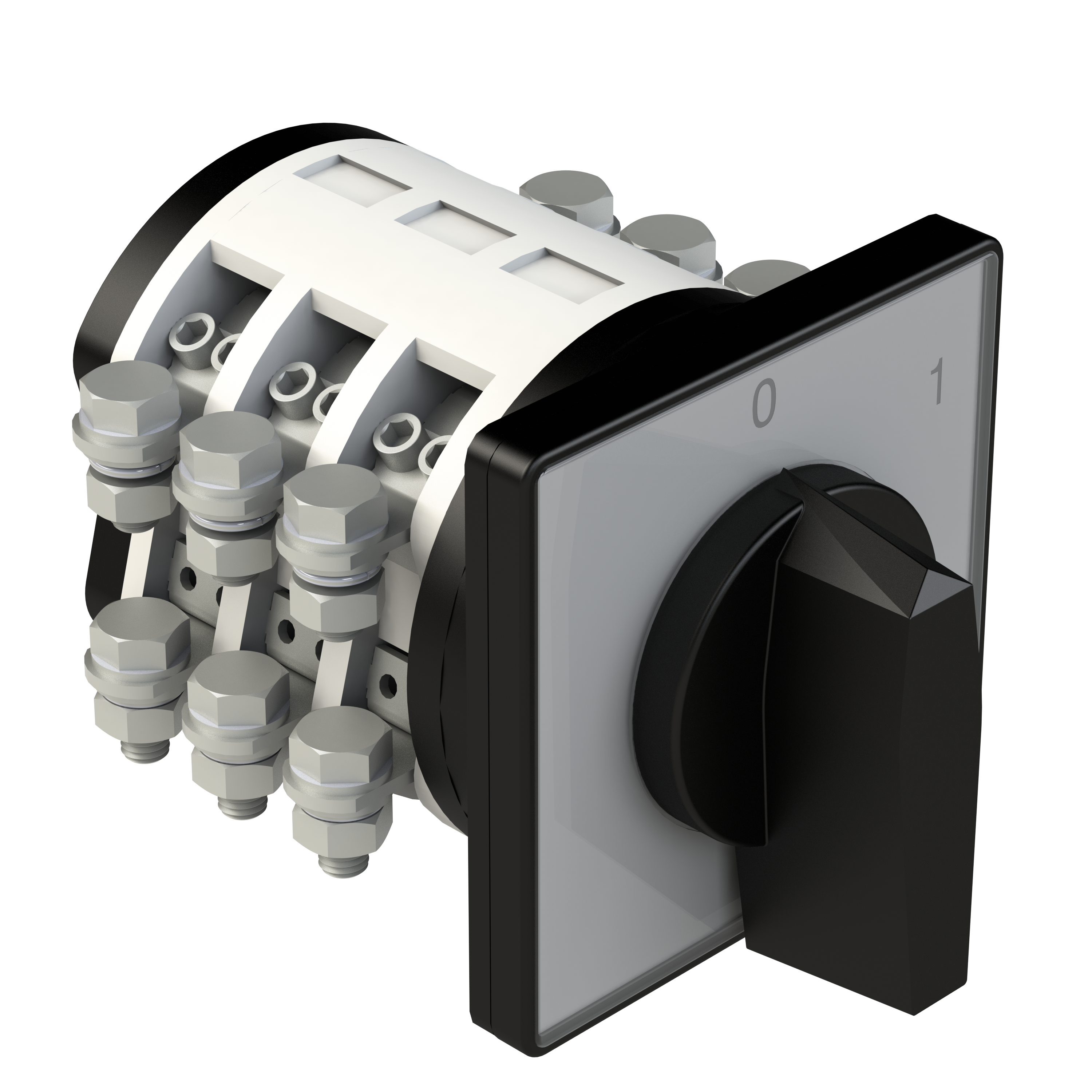

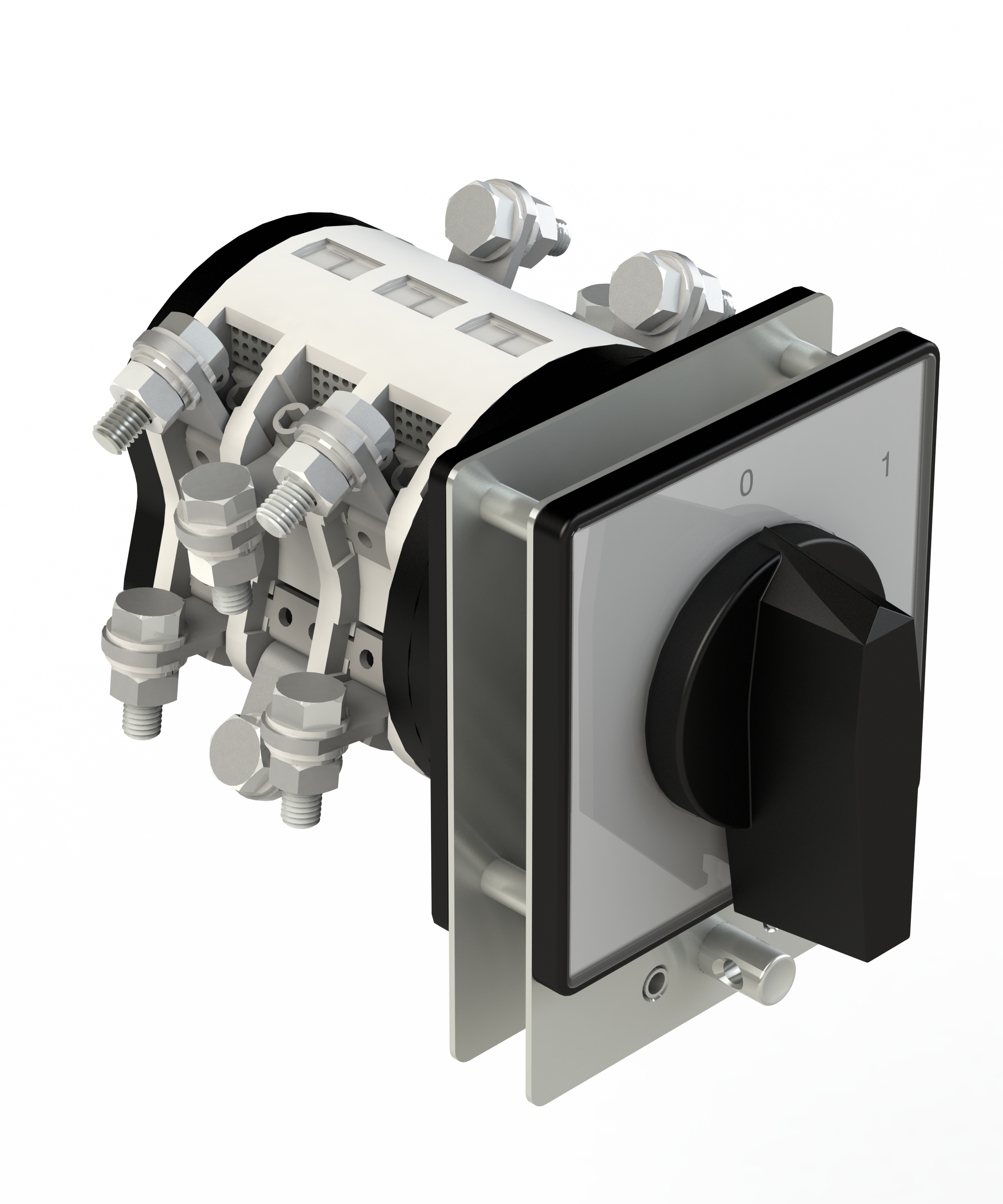

Photo gallery
Key Features:
- High switching capacity: Designed for reliable operation with an unlimited number of switching programs.
- Durability: High electrical and mechanical endurance.
- Compact design and easy installation.
- Multipurpose application: Suitable for switching in main electrical circuits.
- Multiple control positions: Can have up to 12 control positions and 16 switching elements (32 contacts).
- Rotation angles: Available with rotation angles of 30˚, 45˚, 60˚, and 90˚.
Applications:
- Motor switches: For starting and stopping single-phase and three-phase motors directly from the mains. Available as star-delta switches, reversible switches, and speed control switches.
- Power selection switches: Mains-generator.
- Selector and step switches: For transformers.
- Group switches: For switching heaters and lighting.
Operating Conditions:
- Ambient temperature: Suitable for use at temperatures from -25˚C to +55˚C.
Compliance with Standards:
- International and national standards: IEC 60947, IEC 60204, DIN EN 61058, UL 60947-4-1, C 22.2 No. 14, and others.
Product Variants and Options:
- Mounting types: Standard – front mounting (U), rear mounting (O), metal enclosure (L), and plastic enclosure (P).
- Accessories: A wide range of optional accessories and special versions to meet specific customer requirements.
