Key Features:

• Modular Construction: Allows for subsequent upgrades, reducing storage costs.
• Protection Against Accidental Contact: Increased insulation gaps make them safe for main switches and emergency disconnection switches.
• Three Dimensional Sizes: Sizes A0 (16-25-32-40 A), A1 (40-63-80 A), and A2 (100-125-160-200 A).
• Degree of Mechanical Protection: Front IP65, terminals IP20 (with protective cover for CS40-200 models).
• Positive Contact Opening: Compliant with IEC 60947-5-1 Annex K.

Applications:

• Main Switches: For use in industrial installations where safe isolation is required.

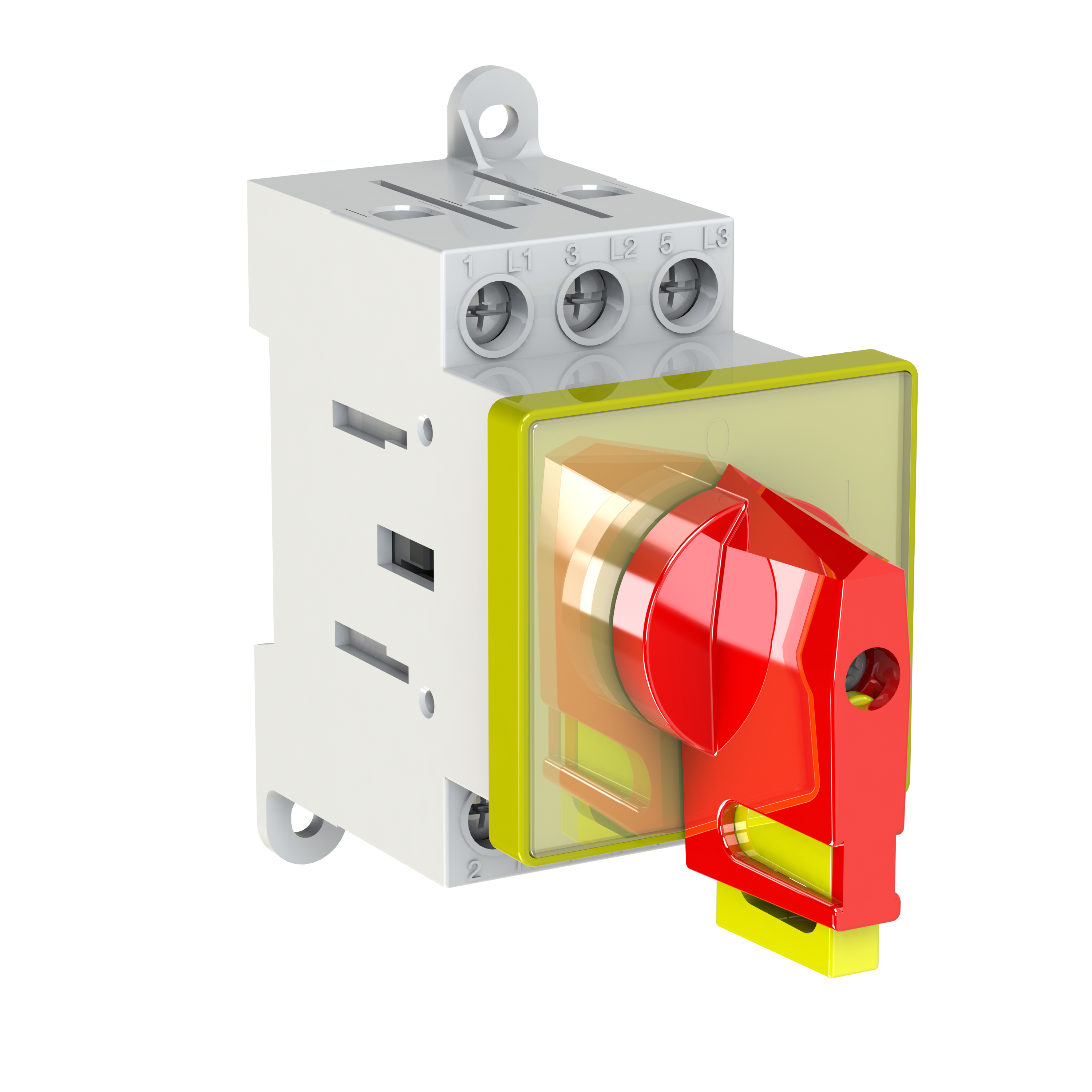

• Emergency Disconnection Switches: Ensure safe disconnection in emergency situations.
• Modular upgrades: Option to add a fourth pole (N-pole), auxiliary contacts 1NO+1NC, auxiliary contacts 2NO, grounding and N-conductor terminals.

Technical Data:

• Rated Insulation Voltage: Ui up to 690 V.
• Rated Thermal Current: Ith from 16 A to 200 A, depending on the type.

Special Features:

• Larger front assembly: Switches requiring a larger front assembly than standard are marked with an H (e.g., CS25H).
• Available Options: Different front assembly colors, mounting options (front, rear, plastic housing).
• Locking: Locking option in the “0” position with the possibility of using up to 4 padlocks.
• Accessories: Additional elements such as protective caps, auxiliary contacts, shafts for special designs, and modules for specific applications.

Operating Conditions:

• Ambient Temperature: Suitable for operation at temperatures from -25˚C to +55˚C.

Compliance with Standards:

• International and national standards: IEC 60947-1,-3, IEC 60204, DIN EN 61058, UL 60947-4-1, C22.2 No.14, etc.

Product Variants and Options:

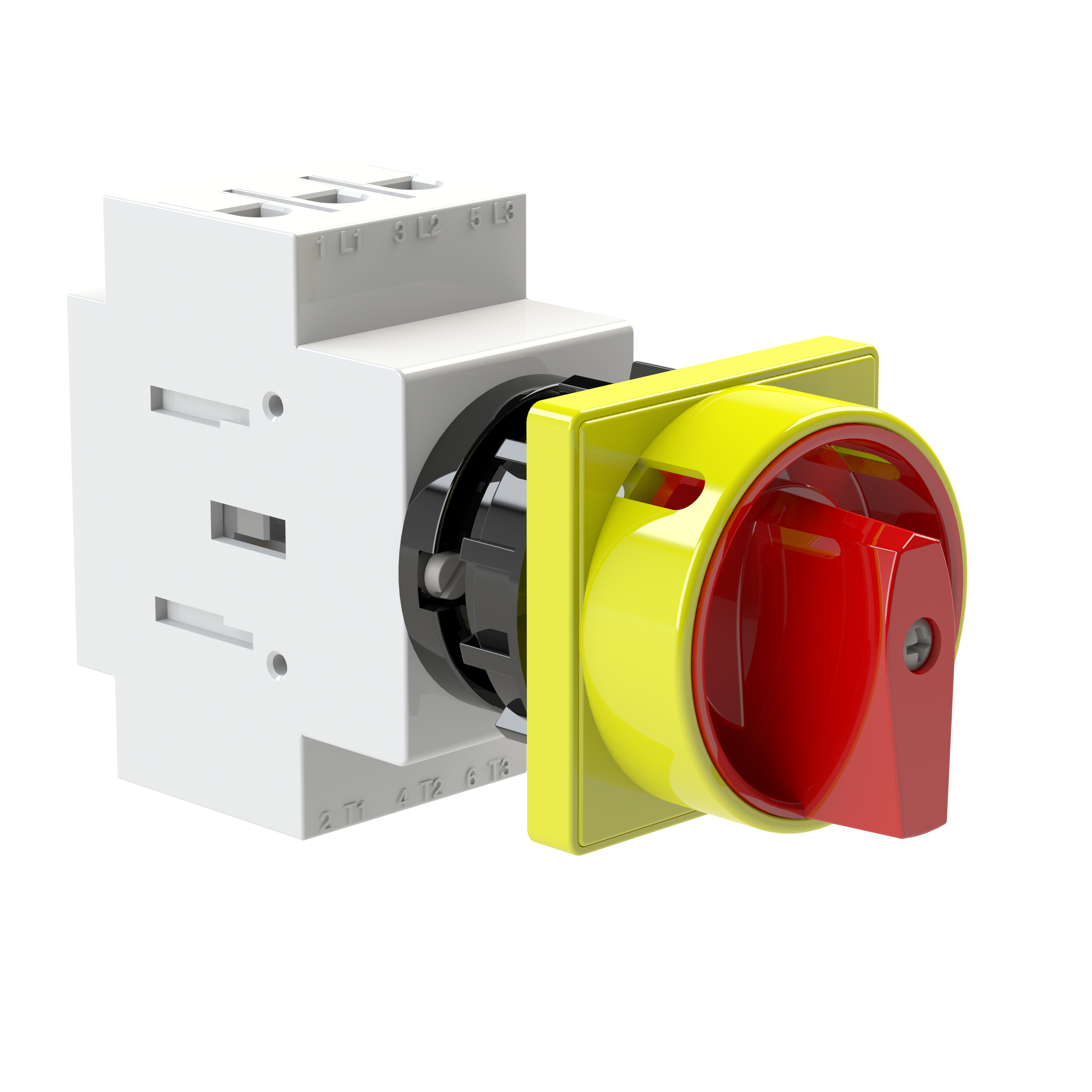

• Mounting types: Standard – front mounting (U), rear mounting (O), and enclosed version (P)
• Accessories: Wide range of optional accessories and special versions to meet specific customer requirements.
